Turn Mill Center

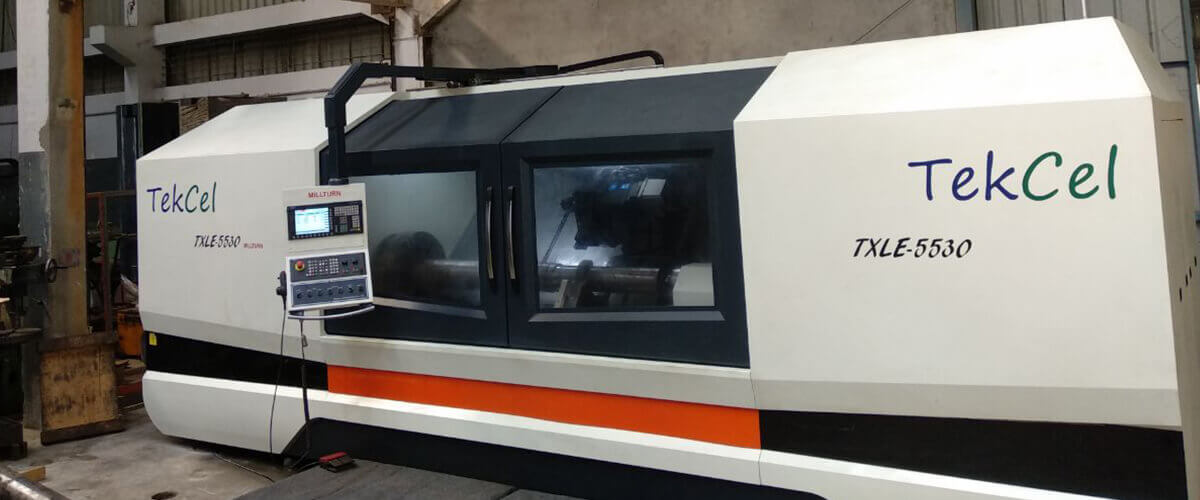

About TXLE

TXL family of Turning Centre combines high capacity metal removal with high level of accuracy, rigidity and stability. Generally conceived and executed to match any imported machines.

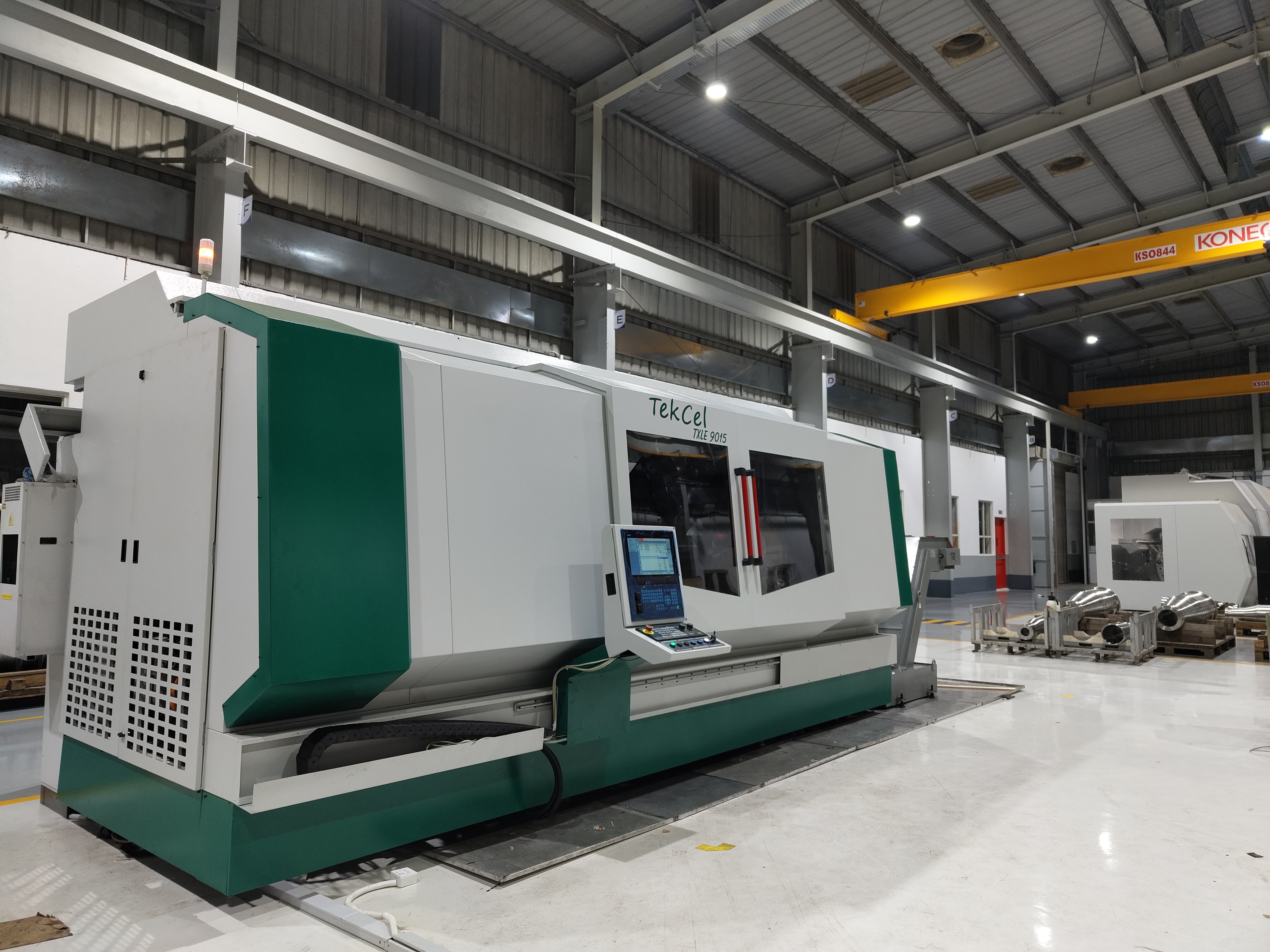

Turn Mill Center

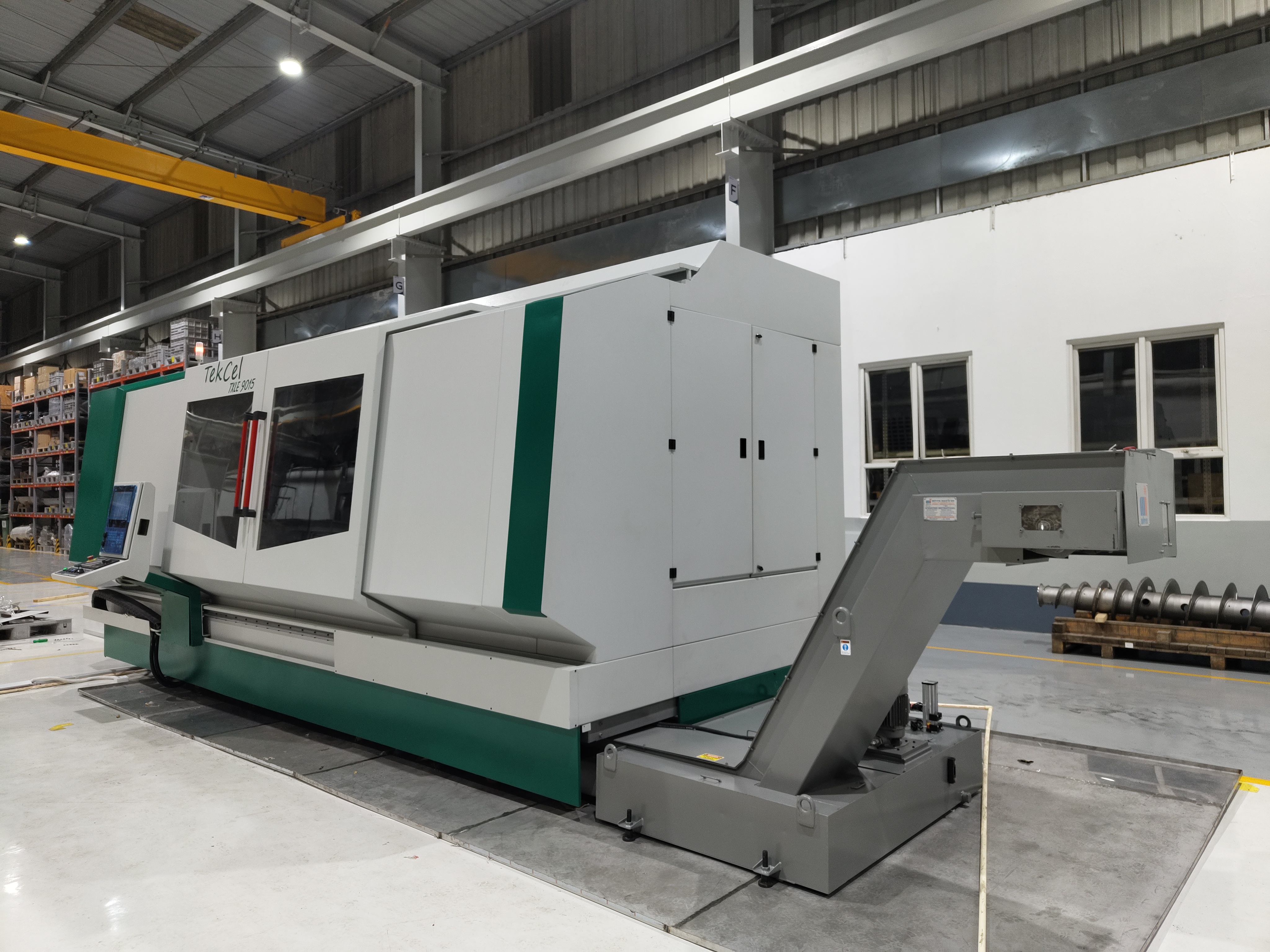

Turn Mill Center

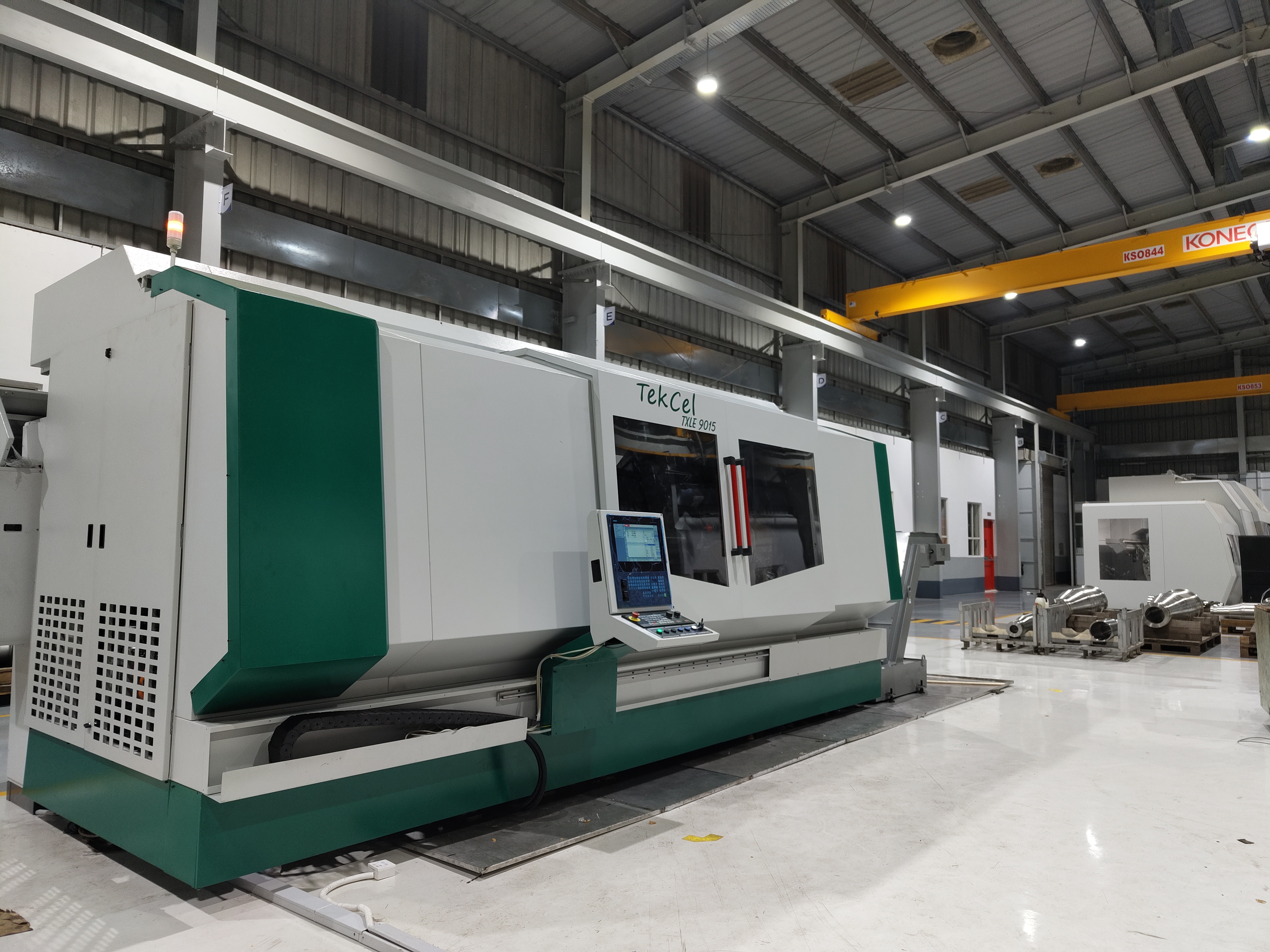

Turn Mill Center
Turn Mill Center

SALIENT FEATURES

45º slant, Torque tube structure poly concrete filled mehanite casting with generously dimensioned hardened ground guideways ensures the best dimensional accuracy and surface finish in normal and hard part turning. The machine is suitably built for hard part turning also.

  • A215" Main Spindle with bearings from FAG, Germany filled with poly kluber grease for life.
  • ZARF Axis bearings from INA, Germany for Axis rigidity and high level of Accuracy.
  • 'C0' and "C1", High Precision ballscrews from Tsubaki, Japan for 'X' and 'Z' axis.
  • Main Spindle drive with High Performance ZF Gear Box and poly 'V' belt for vibration free Spindle running.
  • Fast indexing large 320 size DUPLOMATIC SERVO LIVE TOOL TURRET with VDI-60 DISC
  • 'X' and 'Z' axis movements by High Performance Siemens 1FT6 motors with encoder on the ballscrews.

SPECIFICATIONS TXL-7030 TURNMILL

Capacity

  • Type of Bed / Type of guideway : Slanted 45° / Box
  • Swing Over bed : 900 mm
  • Max Turning Diameter : 900 mm
  • Max Turning Diameter Between Center : 700 mm
  • Max Turning Length : 3200 mm
  • Max Cutting Force : 1000 kgf
  • Chuck Size : 630 mm

Main Spindle

  • Spindle Nose - DIN 55026 : A2-15"
  • Spindle Diameter : 380 mm
  • Spindle Bore Taper : Metric 160
  • Hole Through Spindle : 145 mm
  • Spindle Speed Range : 20 - 1500 rpm
  • Spindle Power (Conti/30 mins) : 39/58 kw
  • Max Torque on Spindle : 4000 / 4800 Nm
  • Spindle dia at Front Bearing : 200 mm (P4)

C' Axis

  • C' Axis Indexing : 0.001° deg
  • C' Axis Maximum Speed : 50 rpm
  • C' Axis Torque on Spindle : 1000 Nm

X Axis

  • Axis Travel : 510 mm
  • Ball Screw Dia x Pitch : 40 x 10 mm
  • Axis Motor Torque : 27 Nm
  • Rapid Traverse Rate : 12 m/min

Z Axis

  • Axis Travel : 3200 mm
  • Ball Screw Dia x Pitch : 50 x 10 mm
  • Axis Motor Torque : 27 Nm
  • Rapid Traverse Rate : 12 m/min

Turret

  • Turret Type (Servo) : VDI 50 / VDI 60
  • No. of Stations : 12 / 8
  • Tool Shank Size for turning : 32 x 32 mm
  • Boring Bar Size : Ø60 mm
  • Turret Indexing Time for 30° / 45° : 0.58/0.74 secs

Live Tool

  • Milling Motor Power : 13 Kw
  • Milling Spindle Torque : 130 Nm
  • Max Speed of Milling Spindle : 3200 rpm
  • Collet Size : Ø34 (ER-50)
  • No. of Live Tools : 6 nos
  • Max Milling Dia : 40 mm
  • Max Drilling Dia : 30mm
  • Max Tapping Dia : M30

Tail Stock - Servo Axis

  • Tailstock Quill Diameter : 180 mm
  • Tailstock Quill Stroke : 150 mm
  • Tailstock Quill Thrust : 3000 kgf
  • Taper in built-in Rotary Spindle : MT6
  • Tail Stock Servo Travel ( Programmable) : 3100 mm
  • Max Weight of Workpiece : 3000 kgs

Accuracy (As per VDI DGQ 3441)

  • Positioning Uncertainity (P) X/Z : 0.010 / 0.020 mm
  • Repeatability (Ps Medium) X/Z : 0.005 / 0.008 mm

Other Specification

  • CNC System (Controls) : Siemens 840D SL
  • Total Connected Load : 75 KVA
  • Machine Length : 7500 mm
  • Machine Width : 2800 mm
  • Machine Height : 2900 mm
  • Machine Weight : 25000 kgs.
  • Noise Level of Machine : 65 db
